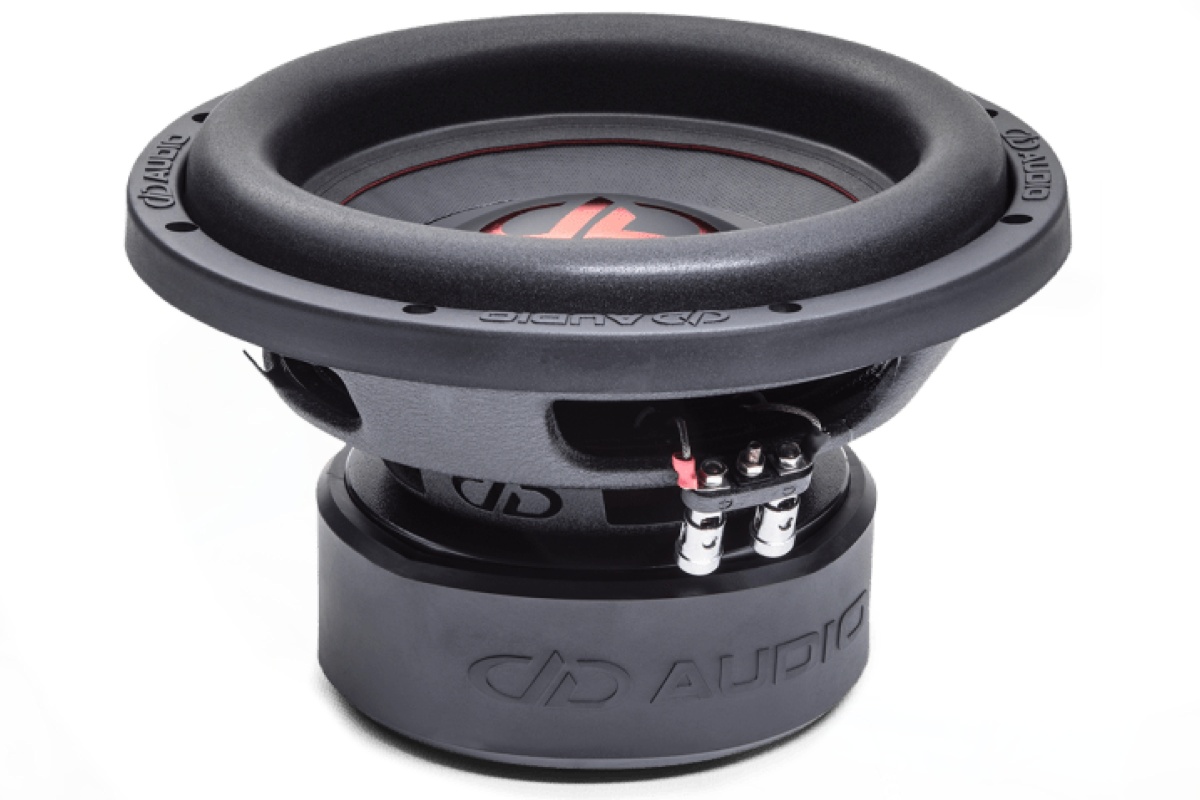

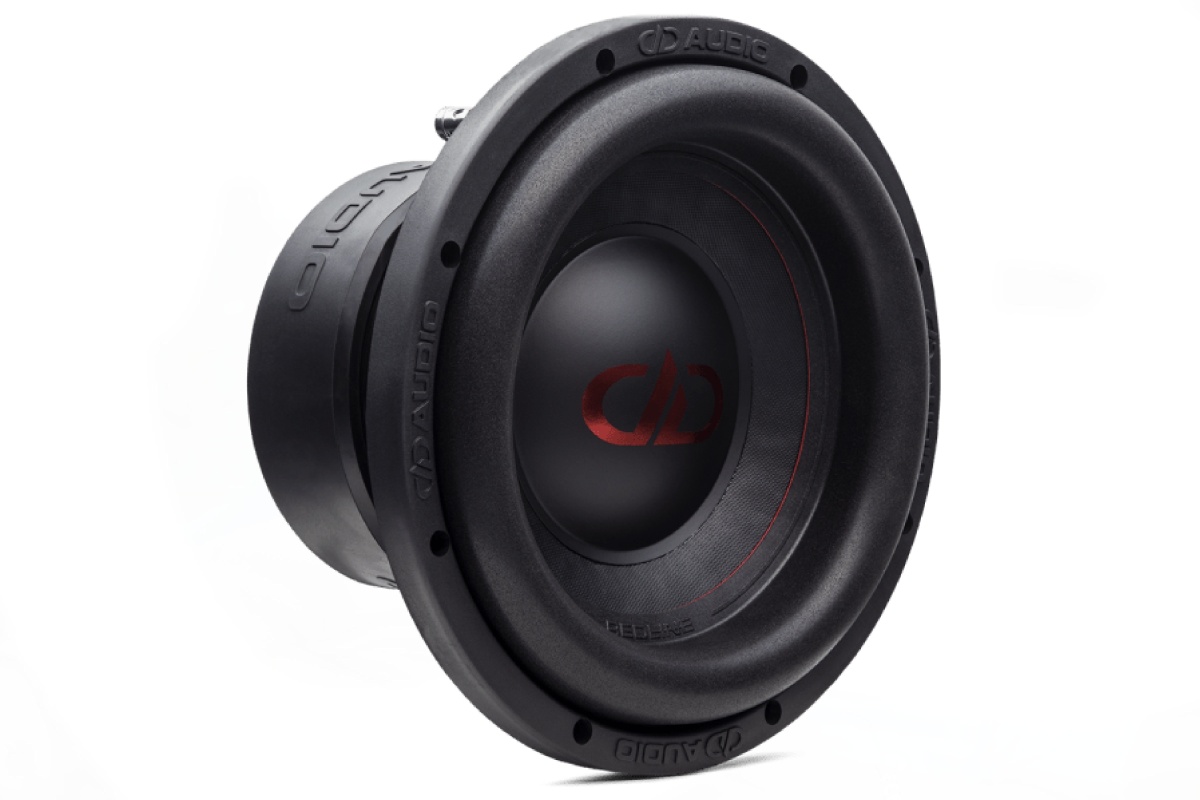

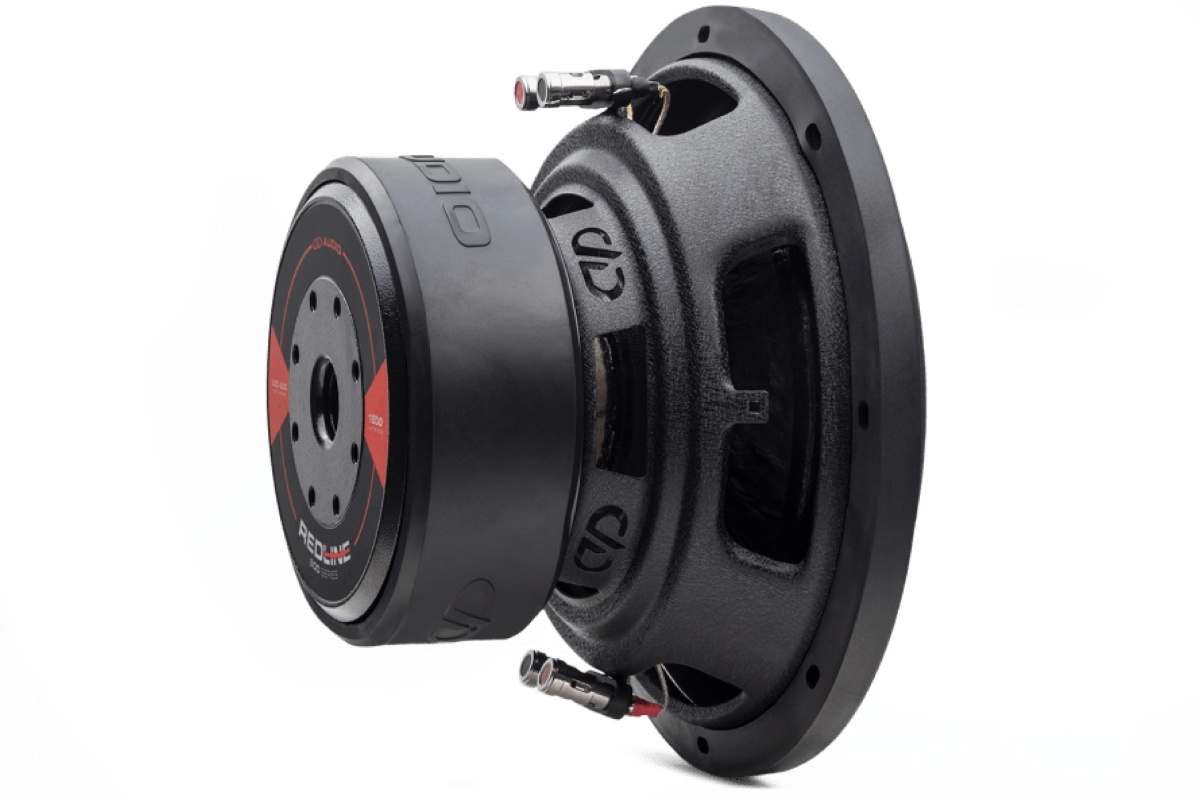

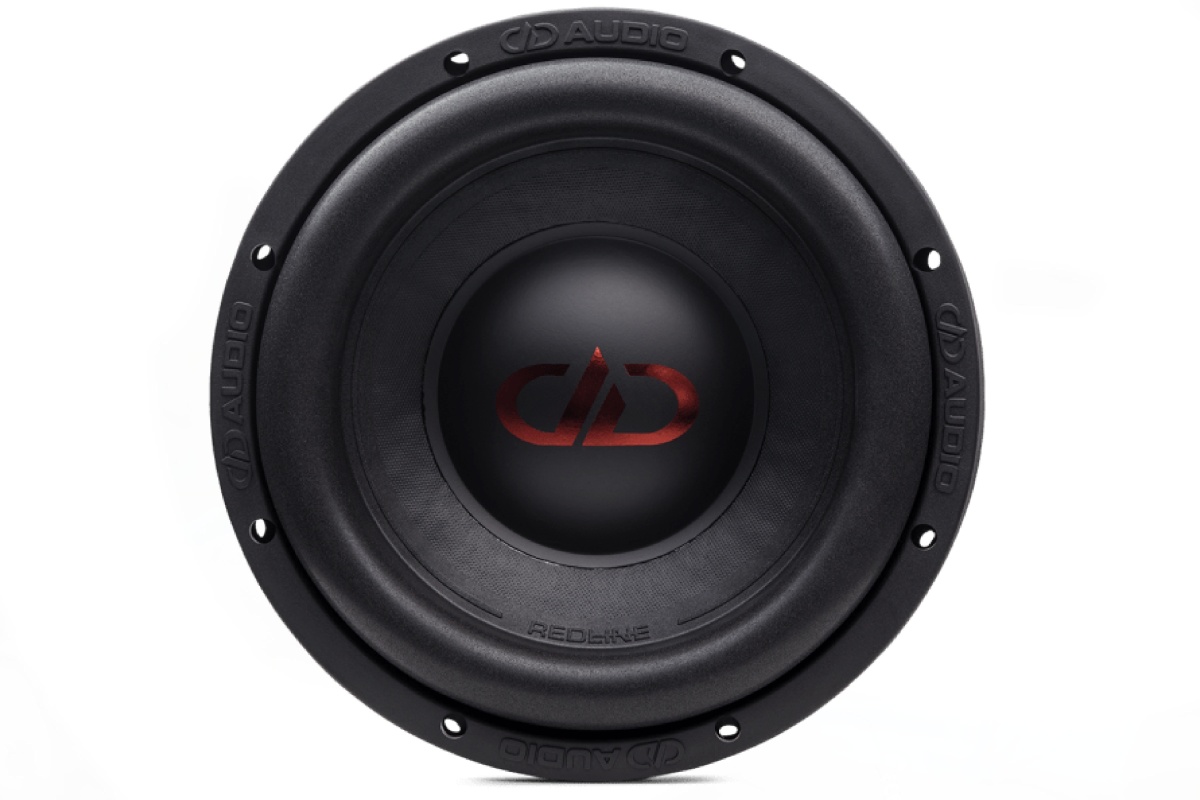

The 600 Series is a great entry point for a higher performance system design that keeps the vehicle as close to stock as possible. These subs will perform like a boss on as little as 300-600 Watts, meaning even multiple woofer systems can be driven with one moderate powered amplifier. This keeps electrical upgrades minimal with less added strain on the vehicle. With a high energy, double stack motor paired with a laminated triple layer poly cotton spider suspension the 600 Series works best with vented and multi-order enclosures.
Specs:
EROM surround
High-temp, 2.5”, voice coil
Triple Layer Deep bass, high excursion spider system
Unique glass fiber and natural pulp cone
Back plate coil gap venting
Extended pole piece
DD stamped steel basket (610-612)
DD cast basket (608)
Aanbevolten liters:
35-43L (Netto) Gepoort
Gesloten kist = N/A !
Parameters:
X-mech: 64mm
X-max: + -10mm
Fs-Hz: 34,99
Qes: 0.5562
Qms: 6.114
Qts: 0.5099
Voor meer waardes klik op deze link
| Artikelnummer | RL610D-D2 |
|---|---|
| Merk: | Digital Designs |
| Variant: | Woofer los |
| Formaat: | 10 Inch |
| MAX vermogen: | 1800W |
| RMS Vermogen: | 600W |
| Impedantie: | 2x 2-Ohm |
| Inbouwdiepte: | 140mm |
| Aansluitmogelijkheden: | 1-Ohm parallel / 4-Ohm in serie |
