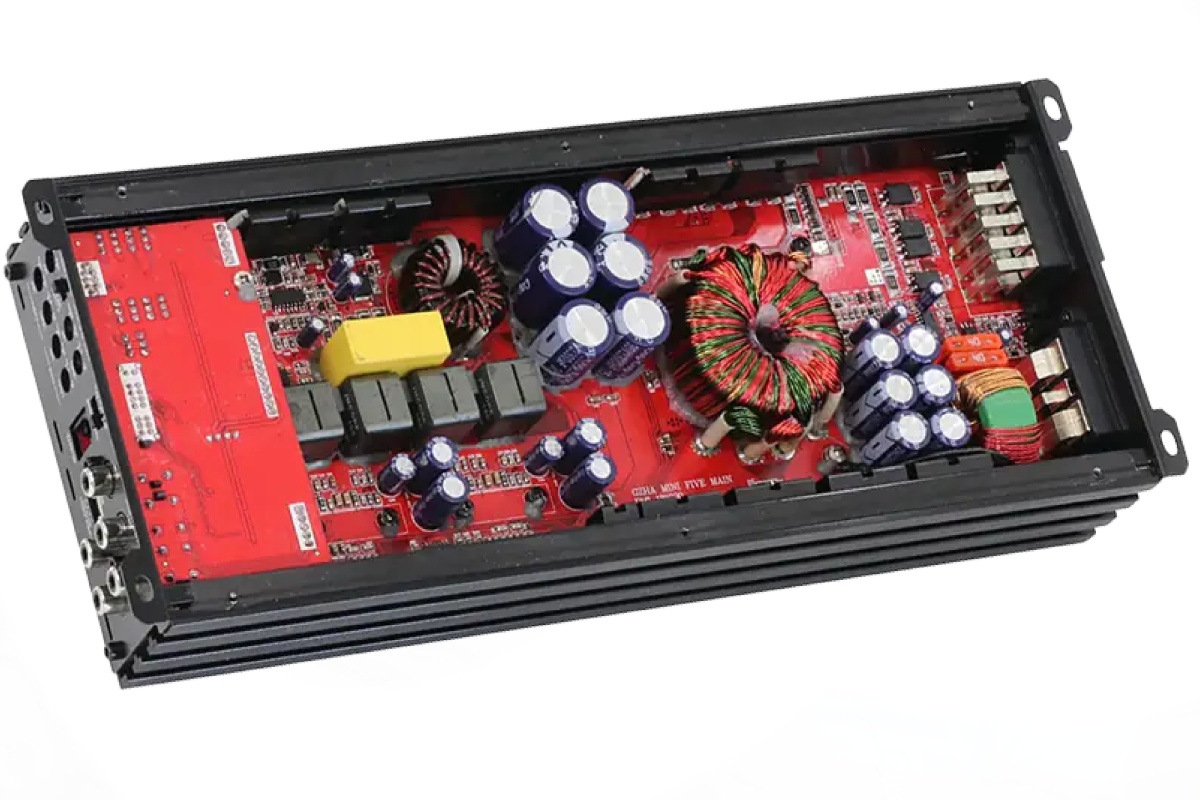

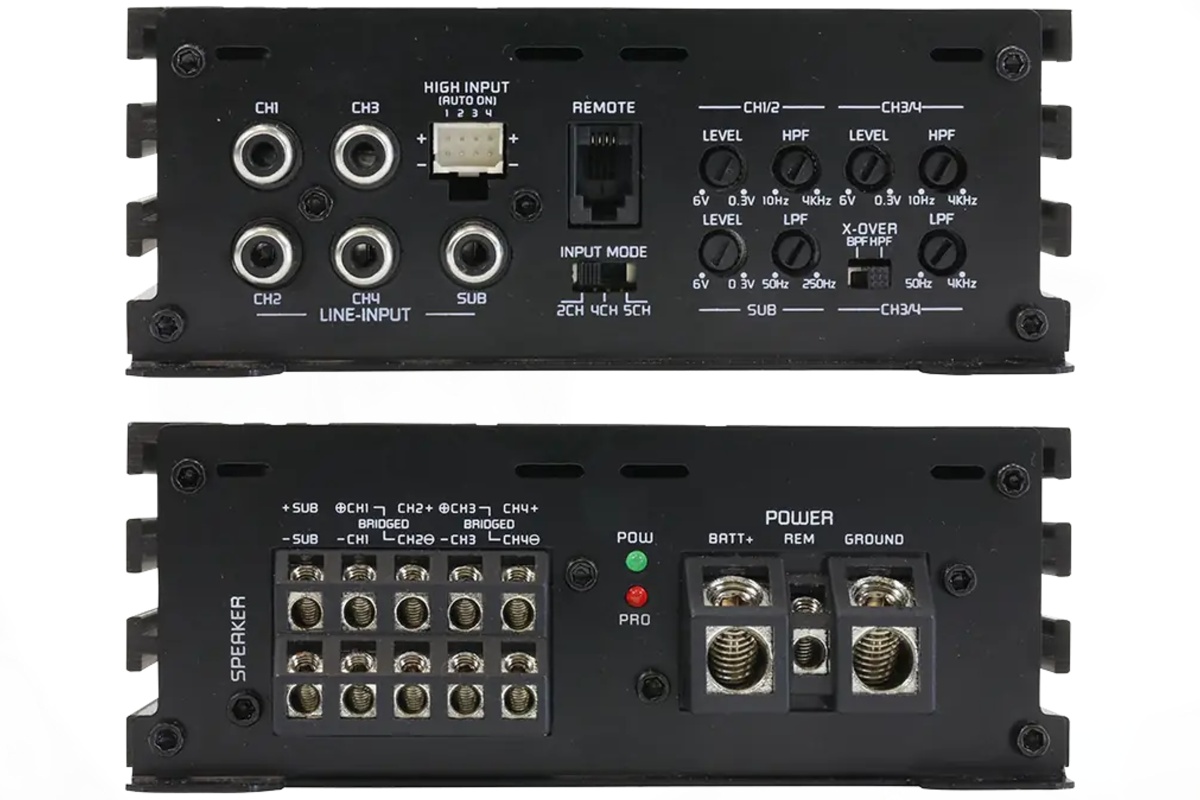

Ground Zero GZHA Mini Five 5-channel amplifier with high efficient class D circuit, integrated activ crossover and compact dimensions.
Features:
Large terminals
SMD components
Class D technology
Stabilized power supply
Compact sized 5-channel amplifier
Socket for wired level remote control
High-level input with auto-on function
Solid heatsink with engraved Ground Zero lettering
Variable active crossover and bass boost, phase shift
High-efficient 5-channel class D amplifier
• Turn-on delay
• 2x stereo RCA input
• Variable low pass filter
• Variable high pass filter
• Short circuit protection
• Thermal protection circuit
• Owner’s manual enclosed
• Overload protection circuit
• Adjustable input sensitivity
• 2 ohms stable in stereo mode
• 4 ohms stable in bridged mode
• 1 ohm stable (channel 5 / subwoofer)
• High-level input with auto-on function
| Artikelnummer | GZHA MF |
|---|---|
| Merk: | Ground Zero |
| Aantal kanalen: | 5-Kanaals |
| MAX vermogen: | 1200W |
| RMS Vermogen 4x 4Ω | 75W |
| RMS Vermogen 4x 2Ω | 125W |
| RMS Vermogen 2x 4Ω | 250W |
| RMS Vermogen 1x 4Ω | 190W |
| RMS Vermogen 1x 2Ω | 320W |
| RMS Vermogen 1x 1Ω | 500W |
| Low Pass: | 50 – 4000 Hz |
| High Pass: | 10 - 4000 Hz |
| Bass Boost: | 0-9dB (variabel) |
| Afmetingen: (LxBxH) | 135 x 322 x 52 mm |
| Bass Remote Controller: | Ja, inclusief |
| RCA Output: | Nee |
| High Input: | Ja |
| Klasse: | D |
